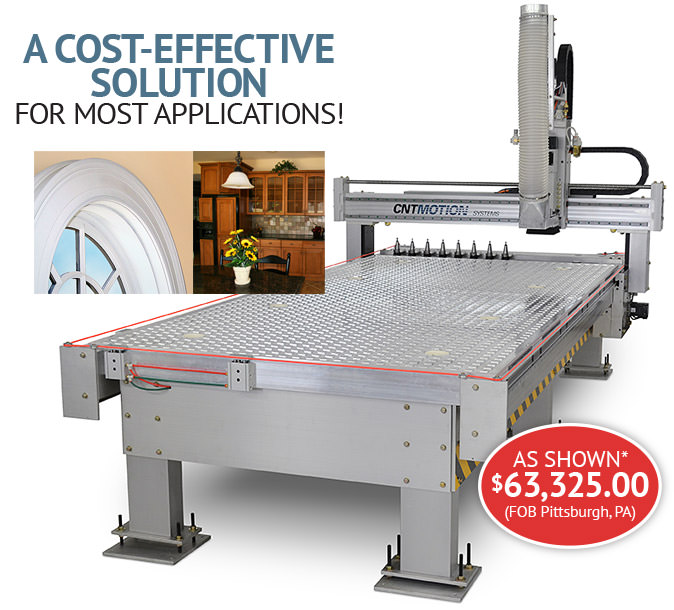

CNT-950 Series Base Model
The Servo-powered CNT-950 Series is our most affordable model and perfect for those new to CNC technology. It’s also a great second or third machine for manufacturers looking to expand their current production capabilities. The CNT-950 is built to the same precision standards as all of our machines and is our most flexible model — we can build it with virtually any table size. It’s also another great machine for nested-based manufacturing, so you can get the most out of your material. Simply add a drill motor or spindle and you’ll be ready to machine your parts quickly and cost-effectively.
• 1500 IPM Positioning Speeds X- & Y-axes
• 500 IPM Positioning Speeds Z-axis
• AC Brushless Closed-loop Servo
• X- & Z-Axis Hiwin Ball Screw Drive
• Y-Axis Helical Rack-and-pinion Drive
• Z-Axis has 7" Vertical Motion
• 60" Wide X 120" Long Cutting Area
• 74" Wide X 149" Long Machine Foot Print
• Perimeter Cable E-Stop
• Computer Control Spindle On/Off/Speed Changes
• Automatic Tool Length Measure Switch
• 74" X 149" Structural Table Base and Long Rails
• Includes Onsrud Tooling Package for Nested Manufacturing
• Pressurized and Lubricated 25mm Bearing System
• One 12-HP HSD ISO30 Four-pole 230V Tool Change Router
• Long-nose Spindle with Advanced Dust Collection 24,000 RPM On The Fly Spindle Speed Control
• Eight-station Fixed Tool Bar and Eight ISO30 Tool Holders
• 25-HP FPZ Regenerative Vacuum Blower and Switch Gear
• 13.2 Hg, 380 CFM, 60" X 120" X 1/2" Aluminum Vacuum Grid
• Five Air-actuated Pop-up Pin Material Stops
• EnRoute6 Plus CAD/CAM Software with Nesting
• Windows10 Pro Computer with 17” Monitor
• Windows CNC Controller Software
• NEMA 12 Computer Control Cabinet
• 3-day Installation and Training (Does not include Installers’ Travel Expenses, Accommodations and Meals.)
| Repeatability | .001" |
| Positioning Accuracy | ±.002" |
| Cutting Area | Customer-Specified |
| Z-axis Travel | 7" or 11" * |
| Rapid Traverse | 1500 IPM |
| Drive Motor | Servo |
| Y-axis Drive System | Helical Rack-and-pinion |
| X- & Z-axes Drive System | Hiwin Ball Screw |
| Controller | Windows® XP® PC |
| Warranty | 1 Year |
| Weight | Approx. 2500 Lbs. |
*Standard specs. Optional dimensions available. Call for details and pricing.
